Baggage Trailers AB502
Durable and reliable Airport baggage range

Load capacity

1410 kg

Maximum width

1530 mm

Maximum length

3950 mm

Weight

360 kg

COMPLIANCE STANDARD

ISO safety

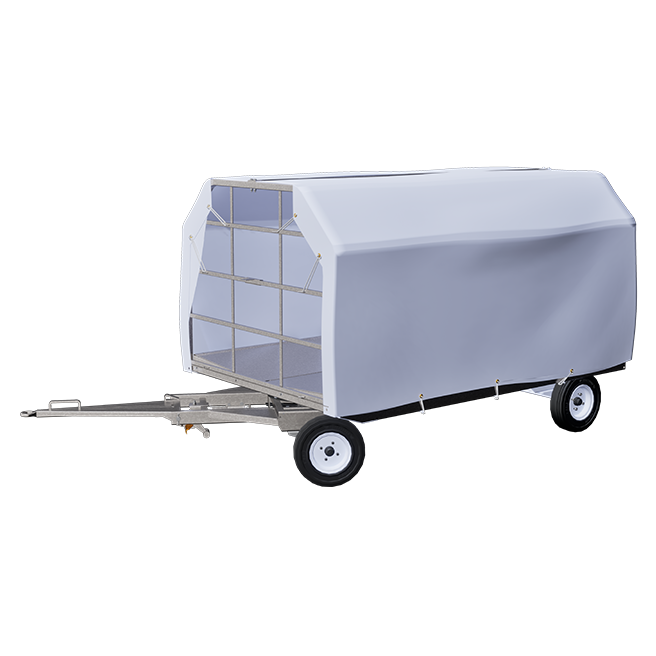

AB502: High Ends with Roof Bar

This delivers a ride quality 50% quieter than any other which reduces the noise pollution in the apron environment. The AB501 feature our Open Deck Design, and as standard include open front and rear panels and a weatherproof cover. By including a single roof bar, the AB502 provides greater access to the unload and reload area.

The AB501 is manufactured from high grade pressed steel fully galvanised to BS EN ISO 1461 specification, providing a strong yet lightweight build. The pivoting tow bar houses a standard 50mm diameter towing eye, and the rear chassis member incorporates a forged or fabricated steel towing jaw with a permanently retained spring-loaded pin assembly to ensure security of the cargo. The front park brake facility is operated through the tow bar in its stored (raised) position and released when the tow bar is lowered. A positive foot pedal also offers quick release of the tow bar park brake. The Viking tapered aluminium chequer plate decking increases retention of the cargo at high speeds whilst also allowing for rainwater drainage. The baggage trailer is available with an anti step over barrier as an optional extra.

Powered by

Key benefits

Durable and Collision-Resistant Design

Easy to use

Lightweight and Manoeuvrable

Safety
